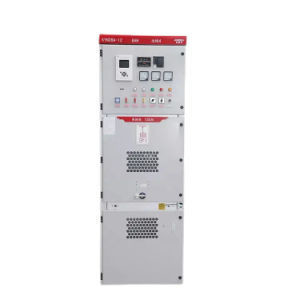

    Energy-Saving Hxgn15-12type Fixed AC Metal-Enclosed Switchgear Gas Insulated Switchgear

    Ask Lasest Price
    Certification : CCC, ISO9001
    Supply Ability : 1000sets/Month
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Energy-Saving Hxgn15-12type Fixed AC Metal-Enclosed Switchgear Gas Insulated Switchgear

    Basic Info.

    Model NO.
    HXGN15-12
    Certification
    CCC, ISO9001
    Shell Material
    Steel Plate
    Voltage Level
    Medium Voltage
    Installation
    Removable
    Structure
    Withdrawable
    Current
    AC
    Trademark
    Witry OEM
    Transport Package
    Piywood Pallet
    Origin
    Shandong China
    HS Code
    8537209000

    Product Description

    Product Description
    HXGN15-12 (F•R) box-type fixed AC metal-enclosed ring network switchgear (referred to as "ring network cabinet") is a new type of switchgear designed for the transformation and construction of urban power grids. It is also used as a breaking load current and short-circuit current and closing short-circuit current in the power supply system. It is suitable for AC 3 to 10kV, 50Hz (60Hz) power distribution systems. Widely used in urban power grid construction and renovation projects, industrial and mining enterprises, high-rise buildings and public facilities, as a ring network power supply unit and terminal equipment, as a spring
    operating mechanism for electrical energy, the mechanism can be operated manually or electrically . The grounding switch and the isolating switch are equipped with a manual force-operating mechanism. The ring network cabinet has strong completeness, small volume, no burning and explosion hazard, and has a reliable "five-proof" function. The ring network cabinet complies with the relevant provisions of GB3906, IEC60420 and other standards.

    Structure features
    1.The frame of the cabinet is made of aluminum zinc plate which is processed by CNC equipment and laser cutting processing, cabinet put oneself in another's position without any solder joint, to the whole assembly structure. With high precision, high strength, corrosion resistance, light weight, the advantages of good generality.
    2.optional FLN36-12 type SF6 load switch and combination electric appliance, high reliability, small volume, long service life, which can realize free maintenance.
    3. interlocking device safe and reliable, fully meet the requirements of "five prevention"
    4. cabinet put oneself in another's position and the top of the back is equipped with pressure relief channel, To ensure the personal safety
    5. has reliable grounding protection system accord with the standard GB3906, IEC298, etc.


    Technical parameters
    ItemUnitValue
    Rated Insulation Level1 Min Power Frequency (P2E)KV42/48
    Lighting Impulse withstand voltage (P2E)KV75/85
    Rated VoltageKV12
    Rated FrequencyHz50/60
    Rated CurrentA630~4000
    Main Busbar Rated CurrentA1250/1600/2000/2500/4000
    Branch Busbar Rated CurrentA630/1250/1600/2000/2500/3150
    Rated Short time Withstand Current(4S)KA16/20/25/31.5/40/50
    Rated Peak Withstand CurrentKA40/50/63/80/100/125
    Protection LevelEnclosure IP4X
    Outline Dimension(Width*Depth*Height)mm650(800/1000)*1500(1670/1300/2000)*2200
    Weightkg800~1200
